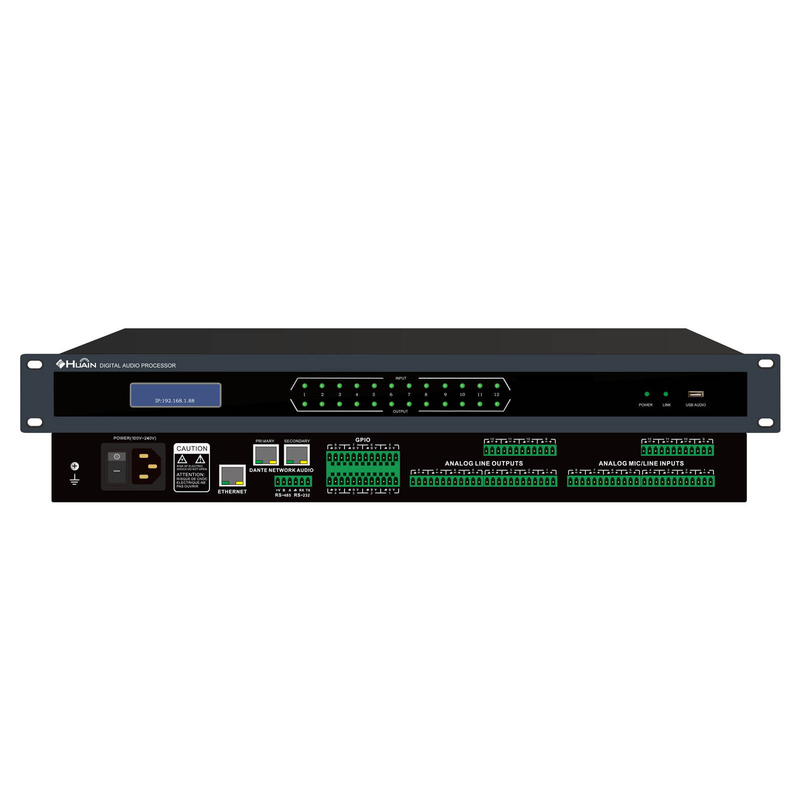

HUAIN Dante Audio 12x12 Poe Digital Audio Media Matrix Processor

Large Image : HUAIN Dante Audio 12x12 Poe Digital Audio Media Matrix Processor

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HUAIN
Model Number:	HY-DA1212DA1

Contact Now

Detailed Product Description

Warranty:	3years	Power:	250w
Voltage:	220v	Light Source Type:	No
Name:	DANTE Media Matrix	Size:	483x265x44mm
Application:	Dante Audio	Material:	Metal+plastic
Function:	Large Capacity Switching Power Amplifier	Packing:	55348.7(cm) 1pcs/ctn
Impedance:	9.5kΩ	Frequency Response:	20Hz-20KHz( ± 0.5dB)
Type:	Digital Audio Processo	Feature:	Matrix Processor
Customized:	Yes

Products Description

Dante12 × 12 Digital Audio Media Matrix

· 40bit DSP high speed floating point arithmetic engine processing chip · With 160 × 32lcd display, with 24 digit analog-to-digital conversion, 96KHz sampling frequency · It has 8 Dante input and 8 Dante output channels · It has 12 channels of switchable balanced microphone / line level input and adopts Phoenix interface · Each MIC input supports 48V phantom power supply · It has 12 balanced line level outputs and adopts Phoenix interface · The input channel has 12 PEQ segments and provides five filter types · The input channel has the functions of adaptive echo cancellation (AEC) and noise suppression (ANS) · The input channel has the functions of gain sharing automatic mixing (AMC), threshold automatic mixing (gate mixer), automatic gain (AGC), Ducker, noise gain compensator (ANC). · The output channel has 12 PEQ, 31 GEQ, frequency divider, time delay and limiter

model	Dante12 × 12 Digital audio media matrix
Working power supply	AC100~240VA，50/60 Hz
Audio input	12 Dante inputs and 12 balanced inputs, Phoenix interface
Input level	0dBu line or - 40 dBu microphone level
Input quantization	96KHz/24bit
dynamic range	110dB
Input impedance	9.5kΩ
Audio output	8-way Dante output and 8-way balanced line level, Phoenix interface
DSP frequency	80 MHz
A/D dynamic range	114dB
Output impedance	102dB
Output quantization	48KHz/24bit
maximum output	20dBu
USB interface	directly connected to sound card
colour	black
Installation method	Applicable to 19 inch standard rack

Details Images

Control mode: · 8 key media matrix control panel · Media matrix control panel · 10.1 inch Android wired touch screen · RS232 interface

Customer Photos/Projects case

Our Advantages

Our Services & Strength
HUAIN has advanced scientific research conditions, equipped with acoustics, audio testing laboratory, radio frequency laboratory and other research and development, production.

In order to better improve the user experience HUAIN electronics also provides 7-24 hours sunshine service for each customer to achieve pre-sale, sale, after-sales in one of the omni-directional, three-dimensional, information tracking services.

Company Profile

Q1:Are you a manufacturer or trade company? and Where is your locations?
A: Yes,We are manufacturer and Trading Company,and Our Factory Located by No. 2, Building 1, Xiadong Wufangsha Industrial Zone,Pingzhou, Guicheng, Nanhai District, Foshan, Guangdong, China

Q2:Do you offer OEM&ODM service?
A: Yes,as well,We are very welcome from the global village friends, there is a need for related services cooperation.

Q3: What's the quality standard of your products?
A: Our products has approved by CCC、CE、FCC、RoHS、ISO9001:2015、ISO14001:2015、OHSAS18001:2007、GB/T22080-2016、ISO/IEC27001:2013、ISO/IEC20000-1:11，IP68 and Canada IC,"quality, service, credit AAA enterprise"、CAQI Report、Software work certificates and lot of patents certificates.

Q4: Which place will use HUAIN conference system equipment?
A: Our products are widely used in governments, parliaments, convention centres, courthouses, military forces, hotels,
schools,churches and corporations.large-scale international conference, group and business units, and other fields and widely used in nearly all a case project solutions.

Q5: How many large projects has your company done?
A: The 13th China - LAC business summit, China and Russia media business summit, Botswana-China business summit, China-UK financial research project meetings, Foro Empresarial Panama-China, China-Ghana trade & Investment Forum, China National Youth Games,G50 chairman(beijing)summit, Military World Games,China International Import Expo and the HongQiao International Economic Forum.
