HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room

HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room

HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room

Large Image :  HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room

Product Details:
Place of Origin: Guangdong, China
Brand Name: HUAIN
Model Number: HY-AD8600M5
Detailed Product Description
Warranty: 3years Input Voltage: Other
With Rack Or Not: NO Whether With Data Cable: NO
Intelligent Type: Other Application: Conference System
Microphone: DSP/DDOV Certificate: CE RoHS FCC Certificate
Suitable For: Multimedia Conference Room Product Name: 5G Wireless And Wired Conference Controller
Function: Discussion Material: Plastic,LCD Fully Fitted Touch Screen
Style: Desktop Microphone Polar Pattern: Cardioid
Feature: LCD, With Camera

Product Description

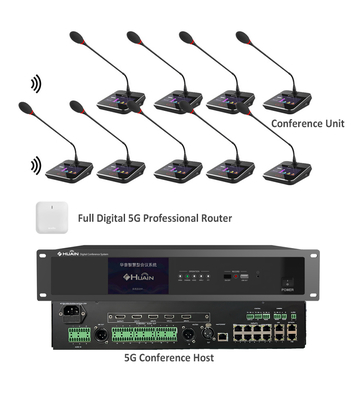

5G Wireless Conference System
5G conference system with clean frequency band, more bandwidth and more features
Feature:
- 5G band: 5725MHz ~ 5850MHz band - Microphone host wired wireless compatible: wired wireless use at the same time - Simultaneous interpretation function: wired microphone with 16 channels of simultaneous interpretation function (optional) - 7-way unit interface - Matrix switching - Conference mode: 5 kinds, the representative unit can open 10 microphones at the same time - Support web page control - Support USB recording
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room 0

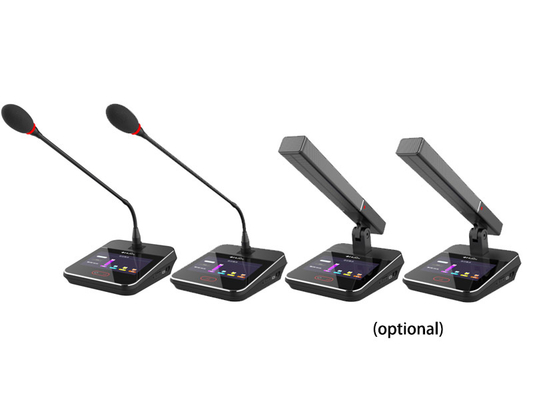

Wireless Chairman / Delegate Unit of 5G Wireless Conference System

4.5" LCD full lamination with nano-level anti-fingerprint touch screen + 5G wireless transmission + video + check-in + voting + 5-segment EQ adjustment + support wired wireless together.
Model
5G wireless chairman/delegate unit
Working frequency
5G
Communication distance
30M±5M
Receiving/transmitting angle
360°all-round
System capacity
Single host can connect 140 microphone units
Display
4.5-inch LCD display
Cardioid directional electret
Microphone Type
30Hz~20KHz
Frequency Response
Signal to Noise Ratio
>92dB
Microphone sensitivity
-35dB±2dB
Li-ion Battery Capacity
4000mA
Camera tracking
yes
Maximum sound pressure level
136dB (THD<3%)
Number of units open
1/2/3/4/5/6/7/8/9/10pcs

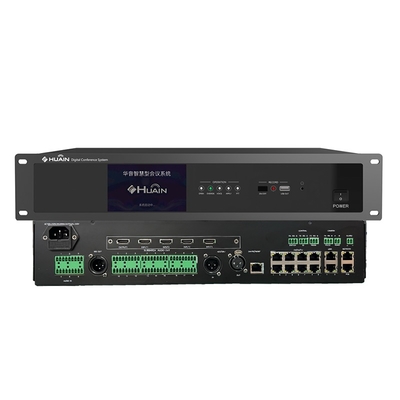

Conference control Host of 5G Wireless Conference System
Host support wired microphone and wireless microphone at the same time.
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room 2
Model
5 intelligent touch conference host
Working power
AC100~240V 50/60Hz
Power consumption Static
10W, maximum 200W
System capacity
Single 140 units
Unit interface
3-way 8-pin and 4-way network port
Display screen
4.5-inch capacitive screen
Display menu
Simplified Chinese, Traditional Chinese, English (selectable)

5G professional Router

Radiation range of up to 40 meters in diameter, can be cascaded, can be ceiling-mounted, wall-mounted, desktop installation of a variety of way.
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room 4
Company Introduction
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room 6
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room 8
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room 10
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room 12
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room 14
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room 16
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room 18
HUAIN All Digital 5G Dual-mode Conference Controller Wired and Wireless Discussion Conference Room 20
FAQ
Q1:Are you a manufacturer or trade company? and Where is your locations?
A: Yes,We are manufacturer and Trading Company,and Our Factory Located by No. 2, Building 1, Xiadong Wufangsha Industrial Zone,Pingzhou, Guicheng, Nanhai District, Foshan, Guangdong, China

Q2:Do you offer OEM&ODM service?
A: Yes,as well,We are very welcome from the global village friends, there is a need for related services cooperation.

Q3: What's the quality standard of your products?
A: Our products has approved by CCC、CE、FCC、RoHS、ISO9001:2015、ISO14001:2015、OHSAS18001:2007、GB/T22080-2016、ISO/IEC27001:2013、ISO/IEC20000-1:11,IP68 and Canada IC,"quality, service, credit AAA enterprise"、CAQI Report、Software work certificates and lot of patents certificates.

Q4: Which place will use HUAIN conference system equipment?
A: Our products are widely used in governments, parliaments, convention centres, courthouses, hotels,schools,churches and corporations.large-scale international conference, group and business units, and other fields and widely used in nearly all a case project solutions.

Q5: How many large projects has your company done?
A: The 13th China - LAC business summit, China and Russia media business summit, Botswana-China business summit, China-UK financial research project meetings, Foro Empresarial Panama-China, China-Ghana trade & Investment Forum, China National Youth Games,G50 chairman(beijing)summit, Military World Games,China International Import Expo and the HongQiao International Economic Forum.
