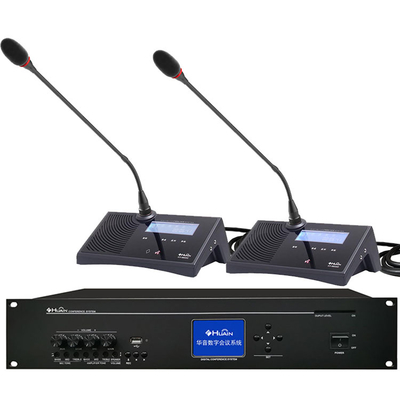

Full Digital Desktop 8 Pin Wired Meeting Mic System for Conference Room with Speaker

Large Image : Full Digital Desktop 8 Pin Wired Meeting Mic System for Conference Room with Speaker

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HUAIN
Model Number:	HY-6600A1

Contact Now

Detailed Product Description

Type:	Audio Conference System, Digital Discussion Conference Microphone	Function:	Discussion
Simultaneous Interpretation:	NO	Application:	Conference System Microphone
Color:	Black	Material:	Aluminum Alloy
Feature:	Noise Cancellation	Weight:	0.75Kg
Power Supply:	DC24V	Frequency Response:	30Hz~20KHz
Connection:	Cable Connecter	Frequency Range:	30Hz~20KHz

Products Description

Feature and function：

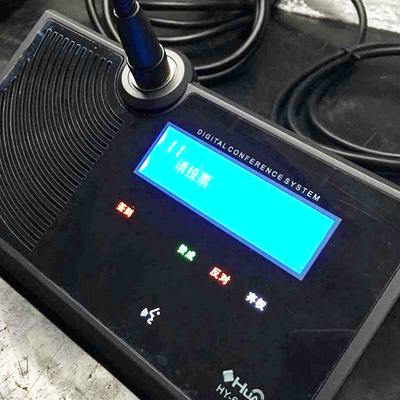

·Equipment 128 × 32 graphic LCD display, 6-inch super capacitive inductive panel. ·A multi-functional conference terminal integrating speech discussion, video tracking, voting, simultaneous interpretation and conference services. ·The system supports a variety of connection modes, such as one-line handle, T-head handle and ring handle. ·The system adopts 8-core DIN shielded cable or CAT5 cable.

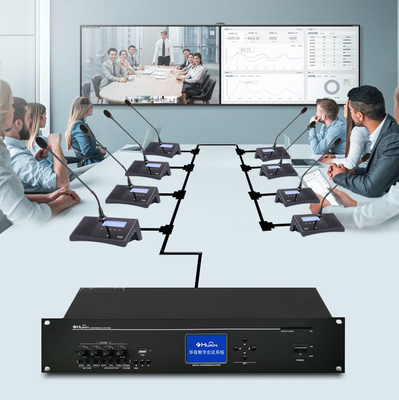

·The unit is a passive equipment. The conference host provides 24V power supply, and 30 conference units can be connected in a single way. ·With the camera, the camera can be automatically tracked after preset by the conference host, control keyboard or computer PC software. ·The system has first in first out work, free discussion, speech mode, queuing mode, computer permission mode and speech time limit mode. ·It has three key or five key voting function, supports key check-in, IC card check-in and supplementary check-in functions, and dynamically displays data.

·The built-in channel selector can be extended to answer in different languages such as 4 / 8 / 12 / 16 / 20 / 32, and supports 64 languages at most.

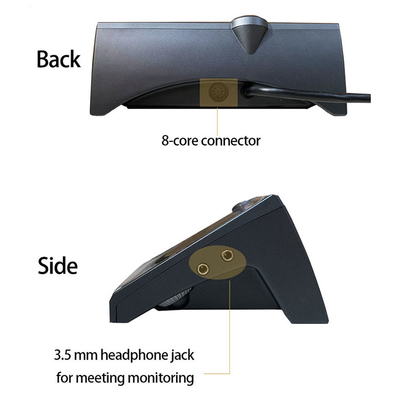

·The "hot plug" function of live line shall be provided between units. ·With two 3.5 mm headphone sockets. ·Built in 2W high fidelity speaker.

Specification

system capacity	Single channel 20 sets, expandable 65535 sets
display	128 × 32 graphic LCD display, 6''glass panel Microphone
Microphone type	Cardioid directional electret
Microphone Sensitivity	- 37dB±2dB
frequency response	30Hz~20KHz
Signal to noise ratio	>90dB
dynamic range	96dB
Total harmonic distortion	< 0.05%
Channel separation	102dB
microphone sensitivity	-37dB±2dB
Connection mode	T-head, ring handle
Connector	Large 8-core
Unit opening quantity	1 / 2 / 3 / 4 / 5 / 6/7/8/9
Earphone Output Connector	Φ 3.5mm stereo jack
Headphone volume	10mW
Earphone load	>16Ω
