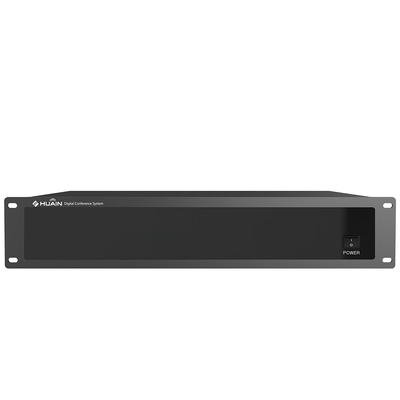

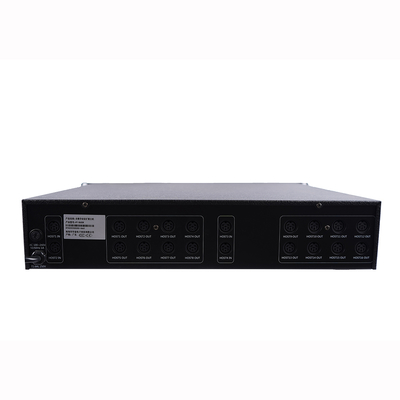

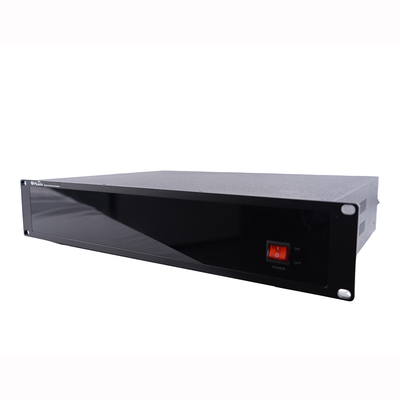

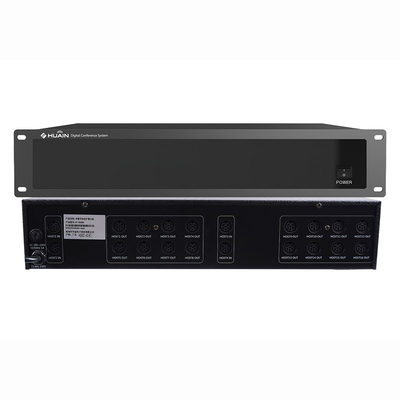

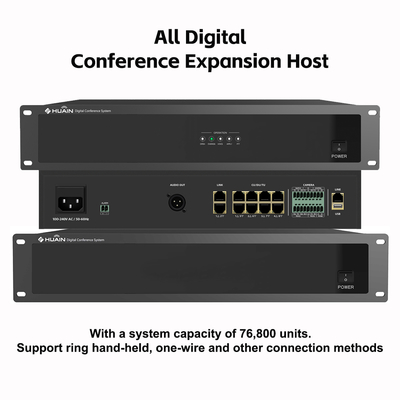

All Digital Conference Expansion Host 5G Wired Discussion Microphone System with System Capacity of 76,800 Units

Large Image : All Digital Conference Expansion Host 5G Wired Discussion Microphone System with System Capacity of 76,800 Units

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HUAIN
Model Number:	HY-AD8600K

Contact Now

Detailed Product Description

Warranty:	3years	Input Voltage:	Other
With Rack Or Not:	NO	Whether With Data Cable:	NO
Intelligent Type:	Other	Application:	Conference Expansion Host
Microphone:	DSP/DDOV	Certificate:	CE RoHS FCC Certificate
Suitable For:	Multimedia Conference Room	Product Name:	5G Wired Discussion Microphone System
Function:	Discussion	Material:	Plastic,LCD Fully Fitted Touch Screen
Style:	Desktop Microphone	Polar Pattern:	Cardioid
Feature:	LCD, With Camera

Product Description

5G Wireless Conference System

5G conference system with clean frequency band, more bandwidth and more features

Feature：

- 5G band: 5725MHz ~ 5850MHz band - Microphone host wired wireless compatible: wired wireless use at the same time - Simultaneous interpretation function: wired microphone with 16 channels of simultaneous interpretation function (optional) - 7-way unit interface - Matrix switching - Conference mode: 5 kinds, the representative unit can open 10 microphones at the same time - Support web page control - Support U disk recording

Wireless/Wired Chairman / Delegate Unit of 5G Wireless Conference System

4.5" LCD full lamination with nano-level anti-fingerprint touch screen + 5G wireless transmission + video + check-in + voting + 5-segment EQ adjustment + support wired wireless together.

Model	5G wireless/Wired chairman/delegate unit
Working frequency	5G
Communication distance	30M±5M
Receiving/transmitting angle	360°all-round
System capacity	Single host can connect 140 microphone units
Display	4.5-inch LCD display
Cardioid directional electret	Microphone Type
30Hz~20KHz	Frequency Response
Signal to Noise Ratio	>92dB
Microphone sensitivity	-35dB±2dB
Li-ion Battery Capacity	4000mA
Camera tracking	yes
Maximum sound pressure level	136dB (THD<3%)
Number of units open	1/2/3/4/5/6/7/8/9/10pcs

Conference Host of 5G Wireless Conference System

Host support wired microphone and wireless microphone at the same time.

Model	5.8 intelligent touch conference host
Working power	AC100~240V 50/60Hz
Power consumption Static	10W, maximum 200W
System capacity	Single 140 units
Unit interface	3-way 8-core port and 4-way network port
Display screen	4.5-inch capacitive screen
Display menu	Simplified Chinese, Traditional Chinese, English (selectable)

5.8G Wireless professional Router

Radiation range of up to 40 meters in diameter, can be cascaded, can be ceiling-mounted, wall-mounted, desktop installation of a variety of way.

Customer Photos/Projects case

Company Introduction

Zhuhai Huain Electronic Technology Co.,Ltd is a professional in modern conference products Manufacturer and designer , research and development production and sales in one of the high-tech enterprises.

Our Advantages

Our Services & Strength

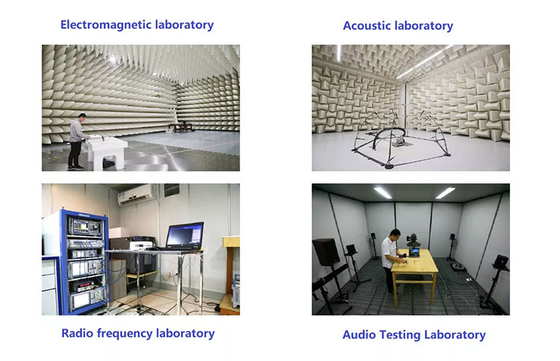

HUAIN has advanced scientific research conditions, equipped with acoustics, audio testing laboratory, radio frequency laboratory and other research and development, production. In order to better improve the user experience HUAIN electronics also provides 7-24hours sunshine service for each customer to achieve pre-sale, sale, after-sales in one of the omni-directional, three-dimensional, information tracking services.

Certifications

Exhibition

FAQ

Q1:Are you a manufacturer or trade company? and Where is your locations?
A: Yes,We are manufacturer and Trading Company,and Our Factory Located by No. 2, Building 1, Xiadong Wufangsha Industrial Zone,Pingzhou, Guicheng, Nanhai District, Foshan, Guangdong, China

Q2:Do you offer OEM&ODM service?
A: Yes,as well,We are very welcome from the global village friends, there is a need for related services cooperation.

Q3: What's the quality standard of your products?
A: Our products has approved by CCC、CE、FCC、RoHS、ISO9001:2015、ISO14001:2015、OHSAS18001:2007、GB/T22080-2016、ISO/IEC27001:2013、ISO/IEC20000-1:11，IP68 and Canada IC,"quality, service, credit AAA enterprise"、CAQI Report、Software work certificates and lot of patents certificates.

Q4: Which place will use HUAIN conference system equipment?
A: Our products are widely used in governments, parliaments, convention centres, courthouses, hotels,schools,churches and corporations.large-scale international conference, group and business units, and other fields and widely used in nearly all a case project solutions.

Q5: How many large projects has your company done?
A: The 13th China - LAC business summit, China and Russia media business summit, Botswana-China business summit, China-UK financial research project meetings, Foro Empresarial Panama-China, China-Ghana trade & Investment Forum, China National Youth Games,G50 chairman(beijing)summit, Military World Games,China International Import Expo and the HongQiao International Economic Forum.
