2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier

Large Image : 2*2 Way Network Ethernet Audio With DSP Power Amplifier Digital Processor Dante Amplifier

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HUAIN
Model Number:	HY-D2230A1

Contact Now

Detailed Product Description

Warranty:	3years	Dimension:	48330045mm
Power Source:	Other	Storage:	Other
Output Power:	2300W@8Ω,2500W@4Ω	Connection Type:	Electric Wire
Shell Material:	Metal	The Body Material:	Wood
Radio Function:	NO	Product Name:	2*300W Dante Digital Power Amplifier
Application:	Professional Performance	Voltage:	100/240VAC
Dimensions:	48330044.5mm	Weight:	3.25 KG
Display:	240*240 Pixel, IPS Color Screen	Frequency Response:	20Hz~20kHz(±0.5dB)1W,8Ω
Control:	TCP/IP,USB,RS485,RS232	Audio Input:	Balanced Input 2XLR; Single-ended Input 2RCA
Keyword:	Dante	Customized:	Yes

Product Description

Dante Amplifier of huain

· Using network tcp/ip control, multiple devices can be managed. · Constant voltage and constant resistance support: 100V, 70V, 8 Ω /4 Ω. · Remote switch on / off, power on/standby setting. · Adopt color LCD. · Built in DSP digital processor. · Support multiple online modes: USB, tcp/ip, RS-232, RS-485. · It can monitor the working status of power amplifier in real time and remotely. · The power amplifier can be identified by software on site. · Support balanced XLR input and unbalanced RCA input. · Support stereo, bridge, mono, free matrix mode and one key switching.

Specification

DSP matrix	2 × 2 Matrix
Output EQ	9-segment parametric equalization
frequency division	Butterworth, Bessel, linkwitz slope 6~48
output delay	2 × 16ms
DSP presets	30 preset positions
control mode	TCP/IP、USB、RS-485、RS-232
Network specifications	TCP/IP、1000base-T/100base-TX、RJ45
power	two × 300W@8 Ω、2 × 500W@4 Ω, bridging 1 × 1000W@8 Ω
Output impedance	Minimum 4 Ω per channel, 8 Ω in bridge mode

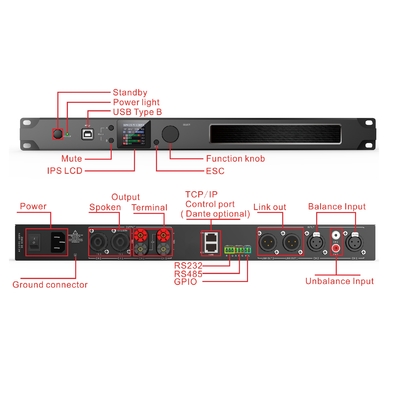

Input interface	Balance input 2 × XLR； Single ended input 2 × RCA
Output interface	2 × Spoken； Terminal post
Maximum input level	6dB sensitivity: 16dbu (4.9v);
Signal to noise ratio	6dB sensitivity: 94db; 0dB sensitivity: 94db;
Frequency response	20Hz ~ 20kHz
THD+N	<0.1%@1w to full power;
Operating mode	Stereo, bridge, mono, free matrix
Remote control	Remote startup, standby and DSP monitoring
Sound source topology	XLR Line-out

Parts 1. Power cord 2. One AB USB cable

Customer Photos/Projects case

Our Advantages

Our Services & Strength
HUAIN has advanced scientific research conditions, equipped with acoustics, audio testing laboratory, radio frequency laboratory and other research and development, production.

In order to better improve the user experience HUAIN electronics also provides 7-24 hours sunshine service for each customer to achieve pre-sale, sale, after-sales in one of the omni-directional, three-dimensional, information tracking services.

Company Profile

Certificate

FAQ

1. who are we?
We are based in Guangdong, China, start from 2015,sell to Domestic Market(40.00%),Africa(13.00%),Mid East(8.00%),Southeast Asia(6.00%),North America(5.00%),Central America(5.00%),Northern Europe(5.00%),South Asia(5.00%),Eastern Asia(3.00%),Southern Europe(3.00%),South America(2.00%),Eastern Europe(2.00%),Western Europe(2.00%),Oceania(00.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Conference System/Conference System Equipments/Paperless Conference System/Sound Amplification System/Central Control System

4. why should you buy from us not from other suppliers?
Zhuhai Huain Electronic Technology Co.,Ltd is a professional in modern conferences products designer,a research and development Manufacturer.All the products were certified by CE,ROHS,FCC,3C,ISO,Patents according to their strict standards and regulations.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Portuguese
