Professional Dante Dsp matrix Audio Processor 12*12 Digital Audio Media Matrix System

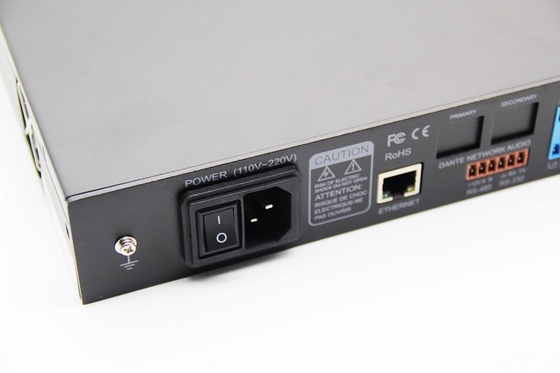

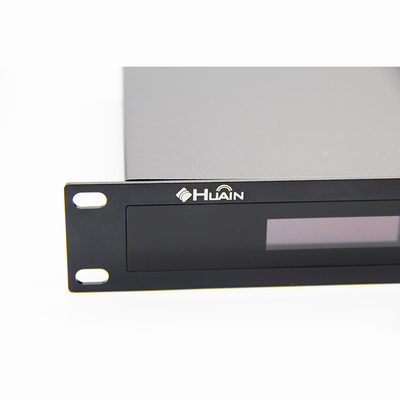

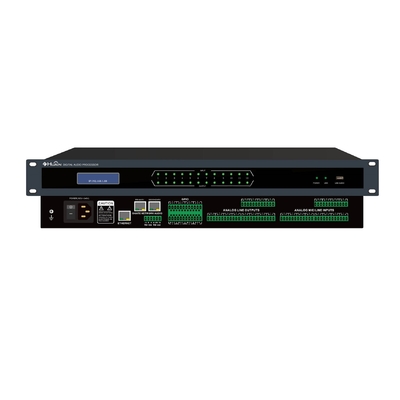

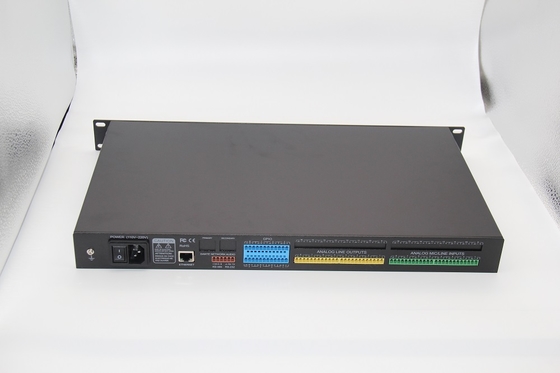

Large Image : Professional Dante Dsp matrix Audio Processor 12*12 Digital Audio Media Matrix System

Product Details:

Place of Origin:	china
Brand Name:	HUAIN
Model Number:	other

Contact Now

Detailed Product Description

Material:	Metal	Color:	Black
Private Mold:	Yes	Product Name:	Dante 12*12 Digital Audio Media Matrix
Function:	Display	Output:	Analog 12-channel
Input:	RX232*RJ45	Material:	MDF+PVC
Feature:	Volume Control	Type:	Home Amplifier
Application:	Multimedia And Home Entertainment	Interface:	12 Input 12 Output

Zhuhai Huain Electronic Technology Co., Ltd.

Main Products: digital conference system, sound reinforcement system, simultaneous interpretation system, video conferencing system, audio and video matrix system and other one-stop meeting solutions products.

Product Description

Specification

model	Dante12 × 12 Digital Audio Media Matrix
Working power supply	AC100~240VA，50/60 Hz
Audio input	12-way balanced input, Phoenix interface
Input level	0dBU line or - 40 DBU microphone level
Input quantization	96KHz/24bit
dynamic range	110dB
Input impedance	9.5kΩ
Input gain	54dB
frequency response	20Hz—20KHz(±0.5dB)
Phantom Power	DC 48V
Channel isolation	100dB@1KHz ,+20dBu
sampling rate	96KHz
Audio output	12-way balanced line level, Phoenix interface
DSP frequency	80 MHz
A / D dynamic range	114dB
Output impedance	102dB
Total harmonic distortion	≤ 0.005%@1KHz,+4dBu
