HUAIN Professional DSP Processor Dante 8*8 Digital audio matrix controller for meeting system

Large Image : HUAIN Professional DSP Processor Dante 8*8 Digital audio matrix controller for meeting system

Product Details:

Place of Origin:	Guangdong, China

Contact Now

Detailed Product Description

Private Mold:	Yes	Brand:	HUAIN
Material:	Metal, Metal+plastic	Name:	DANTE Media Matrix
Size:	483x265x44mm	Application:	Dante Audio
Function:	Large Capacity Switching Power Amplifier	Packing:	55348.7(cm) 1pcs/ctn
Impedance:	9.5kΩ	Frequency Response:	20Hz-20KHz( ± 0.5dB)
Use:	DSP Loudspeaker System Processor	Warranty:	3 Years

Products Description

· 40bit DSP high speed floating point arithmetic engine processing chip · With 160 × 32lcd display, with 24 digit analog-to-digital conversion, 96KHz sampling frequency · It has 8 Dante input and 8 Dante output channels · It has 8 channels of switchable balanced microphone / line level input and adopts Phoenix interface · Each MIC input supports 48V phantom power supply · It has 8 balanced line level outputs and adopts Phoenix interface · The input channel has 12 PEQ segments and provides five filter types · The input channel has the functions of adaptive echo cancellation (AEC) and noise suppression (ANS) · The input channel has the functions of gain sharing automatic mixing (AMC), threshold automatic mixing (gate mixer), automatic gain (AGC), Ducker, noise gain compensator (ANC). · The output channel has 12 PEQ, 31 GEQ, frequency divider, time delay and limiter

Working power supply	AC100~240VA，50/60 Hz
Audio input	8-channel Dante input and 8-channel balanced input, Phoenix interface
Input level	0dBU line or - 40 DBU microphone level
Input quantization	96KHz/24bit
Dynamic range	110dB
Input impedance	9.5k Ω/ one
Input gain	54dB
Frequency response	20Hz—20KHz( ± 0.5dB)
Phantom Power	DC 48V
Channel isolation	100dB@1KHz ,+20dBu
Sampling rate	96KHz
Audio output	8-channel Dante output and 8-channel balanced line level, Phoenix interface

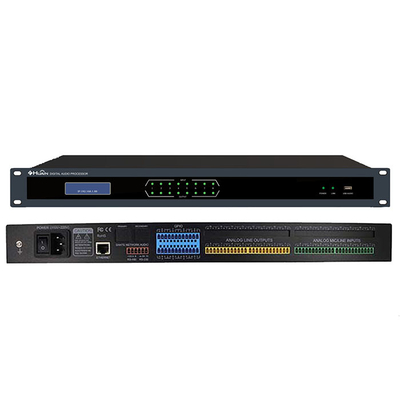

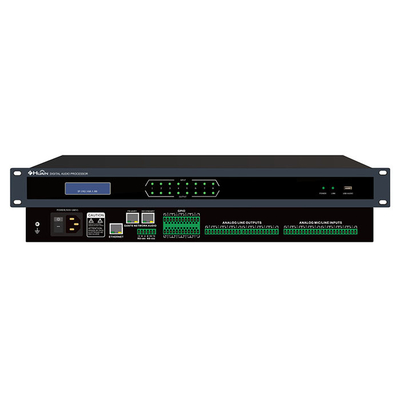

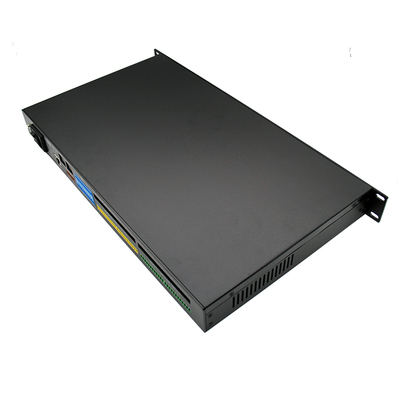

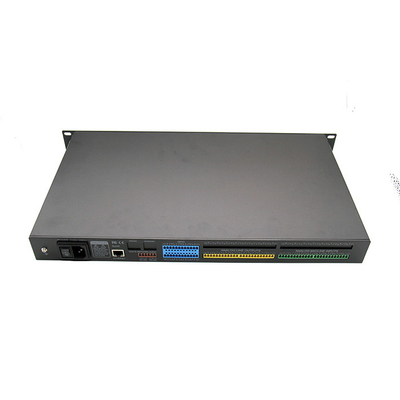

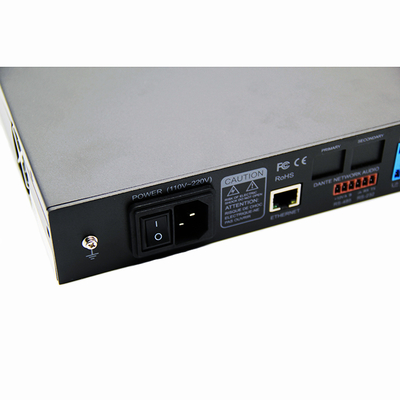

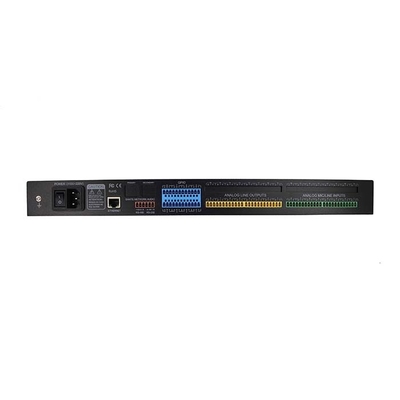

Details Images

Control mode: · 8 key media matrix control panel · Media matrix control panel · 10.1 inch Android wired touch screen · RS232 interface
