HUAIN Conference Electronic Representative Voting System

HUAIN Conference Electronic Representative Voting System

HUAIN Conference Electronic Representative Voting System
HUAIN Conference Electronic Representative Voting System HUAIN Conference Electronic Representative Voting System HUAIN Conference Electronic Representative Voting System HUAIN Conference Electronic Representative Voting System HUAIN Conference Electronic Representative Voting System

Large Image :  HUAIN Conference Electronic Representative Voting System

Product Details:
Place of Origin: Guangdong, China
Brand Name: HUAIN
Model Number: HY-6526A1
Detailed Product Description
Type: Audio Conference System, Network Conference System, Video Conference System Function: Voting, Conferencing
Simultaneous Interpretation: NO Product Name: Audio Conference System
Application: Digital Conference System Certificate: CE RoHS FCC Certificate
Color: Black Keyword: Audio Conferencing Equipment
Material: Aluminum Alloy Microphone: Digital Microphones
Control Mode: Panel Button Interface: DC Power Interface



HUAIN Conference Electronic Representative Voting System 0

HUAIN is a brand of high-end conference system and Audio sound reinforcement system.

It designs and manufactures all kinds of high-quality and professional conference audio products.



HUAIN brand enjoys a high reputation in China in terms of quality and cost performance, and can

provide customers with a set of design schemes suitable for them, such as wired conference system,

wireless conference system, paperless conference, simultaneous interpretation system and audio products,

which are widely used in municipal halls, courts, schools, major stages and conference venues.





FT-6525 series digital table microphone unit

Microphone with 128 × 32 high brightness LCD display, displaying system ID, speaking time, sign in, voting data (Optional)and other information, 9.7mm gold-plated capacitive pickup, supporting one-line, T-head and ring hand-in-hand connection. It can be matched with the conference host  and supports the connection of 240 units.

The system is suitable for large conferences, city halls, religious activities, schools, etc.

 HUAIN Conference Electronic Representative Voting System 2HUAIN Conference Electronic Representative Voting System 4HUAIN Conference Electronic Representative Voting System 6HUAIN Conference Electronic Representative Voting System 8HUAIN Conference Electronic Representative Voting System 10HUAIN Conference Electronic Representative Voting System 12

https://huain.en.alibaba.com/contactinfo.html?spm=a2700.shop_index.88.46.7f1a19b1Lzz32H

Product Description

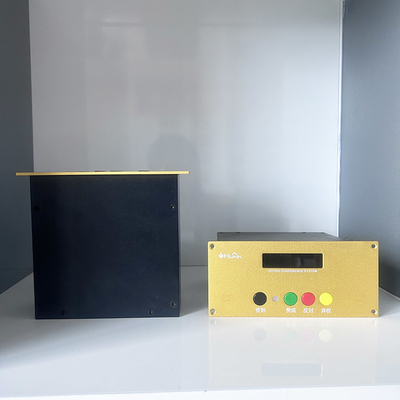

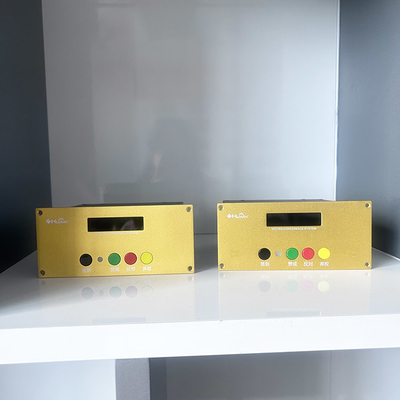

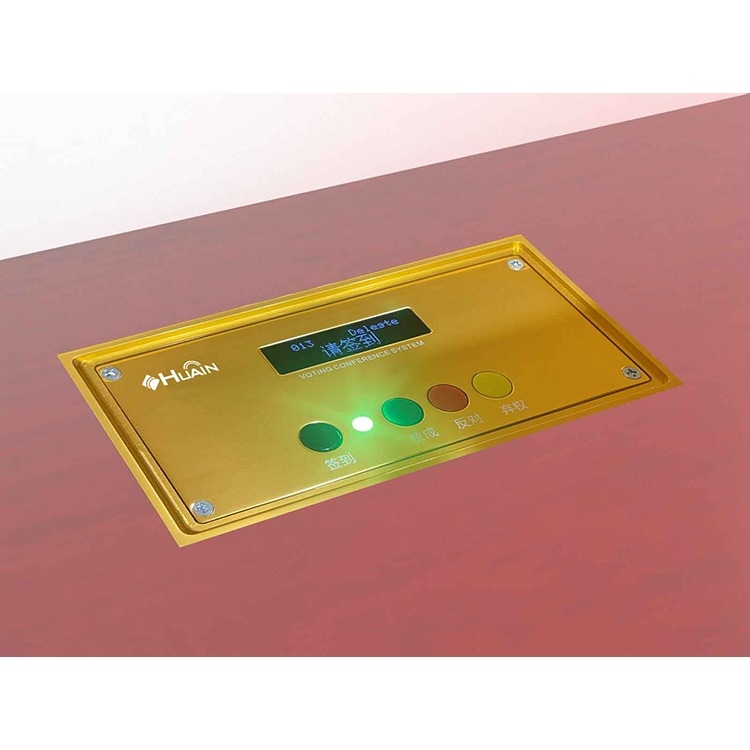

model   Embedded key voting unit HY-6525BS series
Meet the standard   IEC60065 international standard
system capacity    There are 30 units on one road, and 76800 units can be expanded.
display   128 × 32 LCD display
working voltage    24V DC±5%
Working current   60mA ±5%
Connection mode   Junction box, T-head, ring handle
Connector   Din 8pin (or network port)
Numbering function   Customizable ID number
Unit power consumption   1.5W
colour   golden
weight   0.95Kg
Panel size   155 × 70 × 3mm
Opening size   132 × 60 × 132mm
Installation mode   Embedded





HUAIN Conference Electronic Representative Voting System 14

HUAIN Conference Electronic Representative Voting System 16





Recommendation

HUAIN Conference Electronic Representative Voting System 18HUAIN Conference Electronic Representative Voting System 20HUAIN Conference Electronic Representative Voting System 22 HUAIN Conference Electronic Representative Voting System 24HUAIN Conference Electronic Representative Voting System 26HUAIN Conference Electronic Representative Voting System 28
