HUAIN Wifi UHF Wireless Conference System Main Delegate Unit

Large Image : HUAIN Wifi UHF Wireless Conference System Main Delegate Unit

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HUAIN
Model Number:	HY-U5810C/DA1

Contact Now

Detailed Product Description

Warranty:	3years	Input Voltage:	Other
With Rack Or Not:	NO	Whether With Data Cable:	NO
Intelligent Type:	Other	Type:	Uhf Wireless Conference System
Frequency Range:	470-806MHz	Modulation Mode:	FM
Adjustable Range:	200MHz	Number Of Channels:	60
Channel Spacing:	250KHz	Frequency Stability:	± Within 0.005%
Dynamic Range:	>105dB	Maximum Frequency Offset:	± 45KHz
Frequency Response:	50Hz-20KHz

Product Description

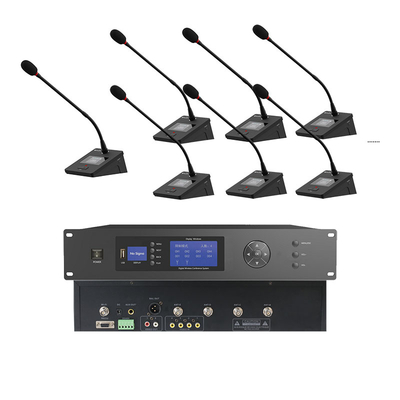

HUAIN UHF WiFi Wireless Conference System

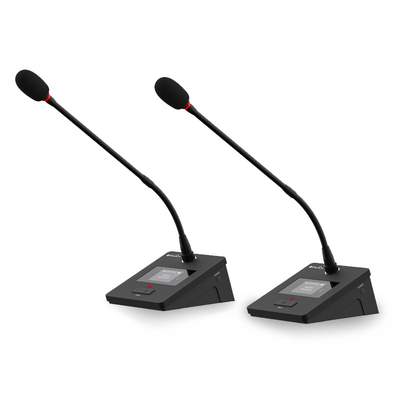

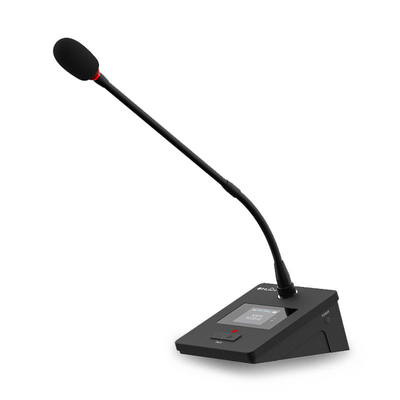

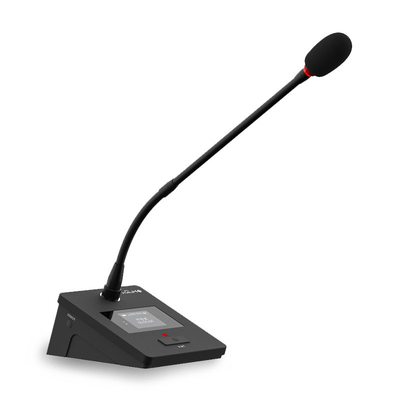

Chairman / delegate unit - 2.4" LCD screen - WiFi+UHF dual engine - Support video tracking - USB rechargeable (optional wireless charging available) - Can open 4 units at the same time - Built-in 3200mA/H high capacity lithium battery, support 10 hours continuous use

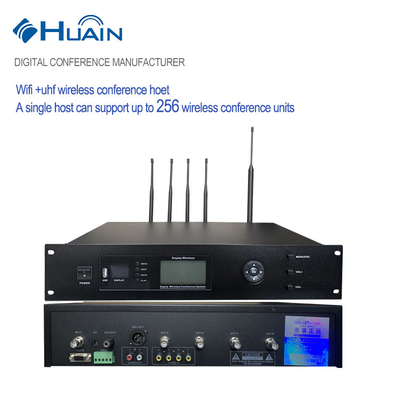

·3.8-inch high brightness LCD display screen can dynamically display system details.
·four groups of audio signals and one group of control signals are used to adjust and set the WiFi channels of wireless conference
host and conference unit respectively.
· up to 256 wireless conference units can be online, and the chairman unit can be connected. The chairman unit has priority.
·it supports the connection of 4 cameras with 4 built-in cameras × 2-channel video matrix function.
·Support visca, PELCO-D and pelco-p conventional control protocols, and adopt RS-485 and RS-232 dual control interfaces.
·it has the functions of USB recording and playback, circular mode, EQ mode, file browsing.
·Mounted on a standard 19 inch cabinet.

Effective distance	80M
Frequency range	470-806MHz
Wireless interface	BNC/50 Ω/ 1
Modulation mode	FM
Number of antennas	8
Adjustable range	200MHz
Sensitivity	12 dB μ V (80dBS/N)
Number of channels	800
Sensitivity adjustment range	12-32 dB μ V
Channel Spacing	250KHz
Frequency Response	50Hz-20KHz
Comprehensive signal to noise ratio	>105dB
Installation method	Suitable for 19 inch standard cabinet.

Our Advantages

Professional audio and video suppliers, professional audio and video conference microphones, professional speakers, mixers and other equipment, pursue high-quality requirements, and cooperate with domestic and foreign government departments for many times!
Professional R&D team
We have a 20 year professional and experienced R&D team. Every year, according to market trends and user needs, the company will continue to optimize and improve its products, provide professional after-sales services, and design a variety of new microphones for iterative updates. We strictly control the sound quality and provide the best service!
