Intelligent Audio Voting Conference System Supports Connection of 240 Delegate Units Discussion Devices

Large Image : Intelligent Audio Voting Conference System Supports Connection of 240 Delegate Units Discussion Devices

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HUAIN
Model Number:	HY-S85DKA1

Contact Now

Detailed Product Description

Type:	Audio Conference System	Function:	Discussion
Simultaneous Interpretation:	NO	Product Name:	Conference System Microphone
Technology:	DSP/DDOV	Lcd Screen:	3.5 "LCD Touch Screen
Certificate:	CE RoHS FCC Certificate	Suitable For:	Multimedia Conference Room
Color:	Black	Material:	Aluminum Alloy
Control Mode:	Touch Glass Panel	Input/Output Interface:	8 PIN XLR
Application:	Conference Room Meeting Solution

Product Description

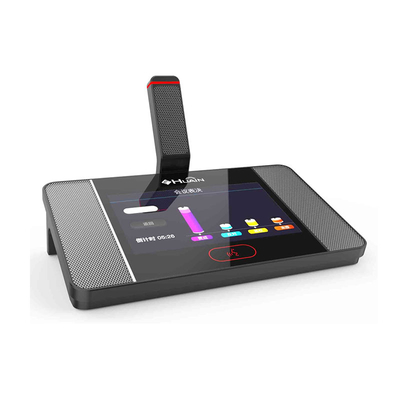

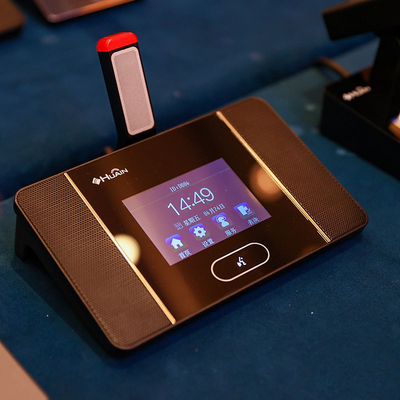

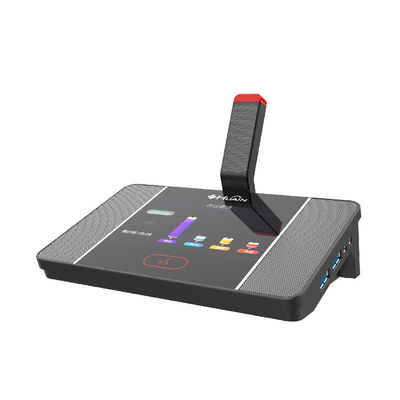

HUAIN Audio Conference System

This conference system supports 240 conference microphone units, the microphone has a 3.5 "LCD fully laminated touch screen and magnetic S-type microphone pole, the effective pickup distance of up to 60-100cm.

microphone using the full zinc alloy body, dual USB interface, dual headset interface. The main features are: support for 8 conference modes, support for video tracking, conference services, check-in, voting, 3-language display, 48V dual backup.

Feature：

- Dual backup design, support for hand-in-hand meetings with phantom power or Dante dual-system audio signal output at the same time. - Magnetic pluggable microphone pole, built-in high-fidelity 2 × 9.7 mm gold-plated condenser pickup head. - Zinc-aluminum alloy microphone pole, microphone pole with 0.4mm high-density acoustic interference holes, built-in auto-gain AGC function, the effective pickup distance up to 60-100cm. - All zinc aluminum alloy body, 6 level touch glass panel, with waterproof and dustproof function. - Support the "ring hand" connection, the microphone comes with a professional 8-core or CAT5 cable. - Support the number of limitations, first-in-first-out, last-in-first-out, the chairman allows (application to speak), voice-activated, time-limited speech, queuing up to speak, free discussion of the eight conference modes. - Built-in multi-channel internal communication and conference services, support for sending tea, paper, pens, waiters and other demand notification, support for Web page service screen to handle requests for services. - Expandable simultaneous interpretation function, support up to 64 languages.

Models	Longitudinal beam array conference unit	The power consumption of the unit	2.5 W.
System capacity	Single channel 20 sets	Equivalent noise	20 the dba (SPL)
Type of microphone	2 x 9.7mm gold-plated microphone core	Maximum loudest pressure level	136 db (THD < 3%)
Frequency response	30Hz~20KHz	Headphone output interface	Φ3.5mm solid jack
Signal to noise ratio	>92dB	Chairman of the number	150 units
Dynamic range	98dB	VIP number	More than one
The connection method	T-shaped head, ring hand in hand ’PNP'	color	Dark blue (black glass panel)
Connect the head	Large 8-core (or mesh)	The weight of the	1.35 Kg
Number of units opened	1/2/3/4/5/6/7/8/9 or all	Installation dimensions	Mm (excl. microphone)
Number of the function	You can customize the ID number	installation	Desktop type

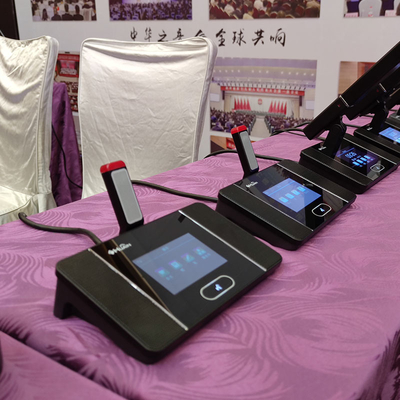

Customer Photos/Projects case

Company Introduction

Our Advantages

Our Services & Strength

HUAIN has advanced scientific research conditions, equipped with acoustics, audio testing laboratory, radio frequency laboratory and other research and development, production. In order to better improve the user experience HUAIN electronics also provides 7-24hours sunshine service for each customer to achieve pre-sale, sale, after-sales in one of the omni-directional, three-dimensional, information tracking services.

Certifications

Exhibition

FAQ

Q1:Are you a manufacturer or trade company? and Where is your locations?
A: Yes,We are manufacturer and Trading Company,and Our Factory Located by No. 2, Building 1, Xiadong Wufangsha Industrial Zone,Pingzhou, Guicheng, Nanhai District, Foshan, Guangdong, China

Q2:Do you offer OEM&ODM service?
A: Yes,as well,We are very welcome from the global village friends, there is a need for related services cooperation.

Q3: What's the quality standard of your products?
A: Our products has approved by CCC、CE、FCC、RoHS、ISO9001:2015、ISO14001:2015、OHSAS18001:2007、GB/T22080-2016、ISO/IEC27001:2013、ISO/IEC20000-1:11，IP68 and Canada IC,"quality, service, credit AAA enterprise"、CAQI Report、Software work certificates and lot of patents certificates.

Q4: Which place will use HUAIN conference system equipment?
A: Our products are widely used in governments, parliaments, convention centres, courthouses, hotels, schools, churches and corporations. large-scale international conference, group and business units, and other fields and widely used in nearly all a case project solutions.

Q5: How many large projects has your company done?
A: The 13th China - LAC business summit, China and Russia media business summit, Botswana-China business summit, China-UK financial research project meetings, Foro Empresarial Panama-China, China-Ghana trade & Investment Forum, China National Youth Games,G50 chairman(beijing)summit, Military World Games,China International Import Expo and the HongQiao International Economic Forum.
