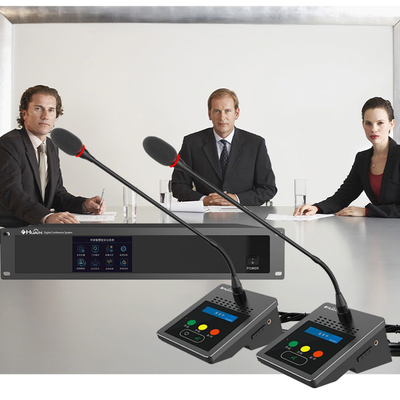

HUAIN Desktop Digital Wired Audio Video Conference Microphone System Professional Meeting Mic With Voting

Large Image : HUAIN Desktop Digital Wired Audio Video Conference Microphone System Professional Meeting Mic With Voting

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HUAIN
Model Number:	HY-6305A1

Contact Now

Detailed Product Description

Type:	Audio Conference System, Video Conference System	Function:	Voting, Conferencing
Simultaneous Interpretation:	NO	Product Name:	Audio Conference System
Application:	Digital Conference System	Certificate:	CE RoHS FCC Certificate
Color:	Black	Keyword:	Audio Conferencing Equipment
Material:	Aluminum Alloy	Microphone:	Digital Microphones
Control Mode:	Panel Button	Interface:	DC Power Interface

Product Description

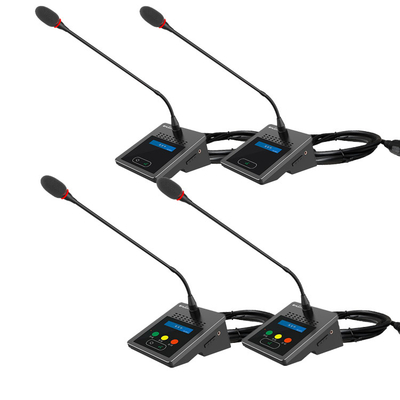

HUAIN Digital Discussion System

· This model has two models: basic model and model with sign in voting function (if you need voting function, please contact us for quotation!)

· We can provide OEM&ODM services, please contact customer service!

Model	HUAIN Digital wired conference chairman/delegate unit
System capacity	20 sets in a single way
Microphone type	9.7mm gold plated microphone core
Signal to noise ratio	>90dB
Total harmonic distortion	< 0.05%
Microphone sensitivity	-37dB±2dB
working voltage	24V DC±5%
Working current	80mA ±5%
Connector	Large 8-core (or mesh port)
Weight	0.80Kg
Overall dimension	130×100×55mm
Color	Black, dark blue (customizable)
Video tracking	Yes
Voting function	Yes（Optional）

Feature

·128 × 32 high brightness LCD display, which can display system ID, speaking time, sign in, voting data and other information. ·Eight meeting modes are supported: quantity limit, first in first out, last in first out, chairman's permission (application for speech), voice activated, limited time speech, queued speech and free discussion. ·Built in class D high-power loudspeaker, not easy to produce howling. ·Zinc aluminum alloy acrylic panel. ·High fidelity 9.7mm gold plated capacitive pickup. ·High sensitivity design, effective pickup distance up to 50-60cm.

Contact us for conference solutions

conference center control unit

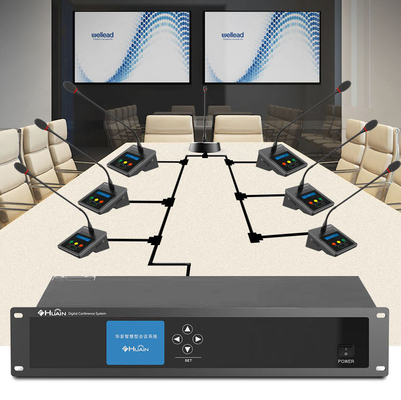

M5 host has dual hot backup function, supports the connection of 4 HD cameras, and has built-in multi-channel internal communication and conference service functions.

Features

·Aluminum alloy panel. ·Support the connection of 240 units. ·Support eight meeting modes (first in first out, last in first out, quantity limit, chairman's permission

(application for speech), voice start, limited speech, queuing speech and free discussion) ·Unit interface: 6-way 8-core port and 2-road network port (or 8-road network port) ·Language display: Chinese, English (customizable) ·Voting function: customizable ·Simultaneous interpretation function: customizable (8 / 16 / 32 / 64CH) ·Dante protocol: Yes ·Size: 483×320×90mm (for 19 inch standard rack)
