Ir Language Distribution Infrared Simultaneous Translation Interpretation System Wireless Conference Interpreter Equipment

Large Image : Ir Language Distribution Infrared Simultaneous Translation Interpretation System Wireless Conference Interpreter Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	HUAIN
Model Number:	HY-600D/04A1

Contact Now

Detailed Product Description

Type:	Audio Conference System	Function:	Translation, Ir Language Distribution
Simultaneous Interpretation:	Yes	Product Name:	Simultaneous Interpretation System
Application:	Meeting,conference Room,multi Conference System	Power Supply:	AC100-240V
Input/Output Interface:	2-way	Brand:	HUAIN
Audio Input:	RCA Socket	Color:	Black
Microphone:	Translation Microphone	Certificate:	CE RoHS FCC Certificate

INTERPRETATION EQUIPMENT

Huain Infrared Simultaneous Interpretation System, using infrared transmission for language distribution, which is highly respected for its superb confidentiality, is the most advanced transmission method of infrared simultaneous interpreting system on the market at present, and is suitable for all kinds of small, medium and large conference rooms and outdoor venues with high requirements for confidentiality.

This series of equipment has the ability to transmit multilingual languages at the same time, without crosstalk and interference, ensuring the uniqueness of the channel, with power and signal indication functions.

Product Description

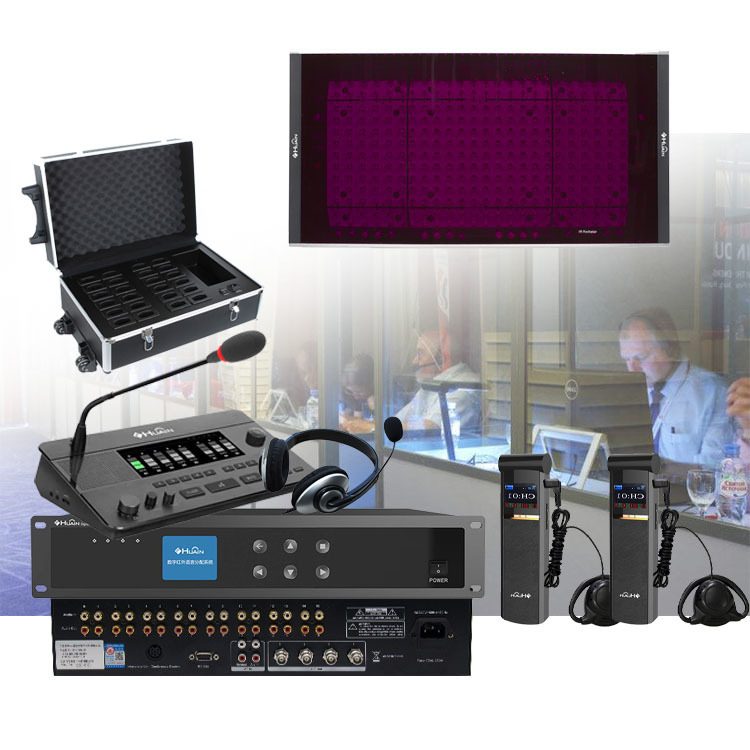

Digital IR simultaneous interpretation system

HUAIN IR simultaneous interpretation equipment， It uses infrared transmission for language distribution, supports 32 channels and is compatible with Bosch-interpretation system.

The digital infrared radiator can transmit 12 and 32 languages.(Please contact us for details!)

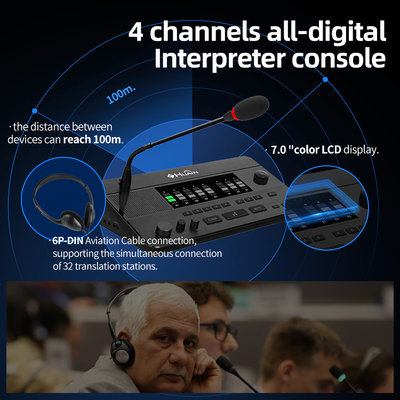

All digital translation console

·Channel: 4 / 8 / 12 / 16 CH. ·Comply with IEC61603-7 and IEC60065 standards. ·Equipped with color display. ·Support the connection of 32 translation stations at the same time. ·High fidelity lossless audio transmission technology, with frequency response up to 30Hz-20KHz. ·It has the functions of indirect translation, cough elimination, speed reminder and asking for help. ·With 3.5mm stereo headphone output port.

system capacity	Single host ≤ 32
frequency response	30Hz-20KHz
display	7.0 "color LCD display
Microphone type	Capacitive
microphone sensitivity	-42dB±2dB
Signal to noise ratio	102dB
dynamic range	106dB
Channel separation	102dB
Total harmonic distortion	< 0.45%

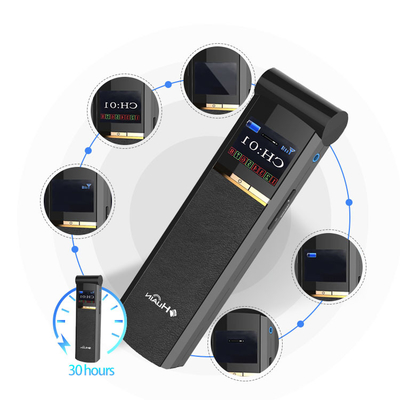

Digital infrared receiver Device

·2-8MHz frequency band. ·Large capacity rechargeable battery, which can work continuously for up to 30 hours. ·128 × 64 channels of LCD display, volume and signal intensity. ·LCD display screen with backlight can still clearly display unit information in dark environment; ·The receiving angle is up to 270 °, which is not limited by the seats in the venue. ·The unit has its own anti-theft detection function. ·With 3.5mm stereo headphone port.

Channel	4/8/12/16
Color	grey(Customizable)
Audio processing	IR-DSP
Distortion degree	＜0.2%
Signal to noise ratio	＞102dB
Channel separation	102dB
working voltage	3.6V
power waste	60mW
Earphone load	32 Ohm

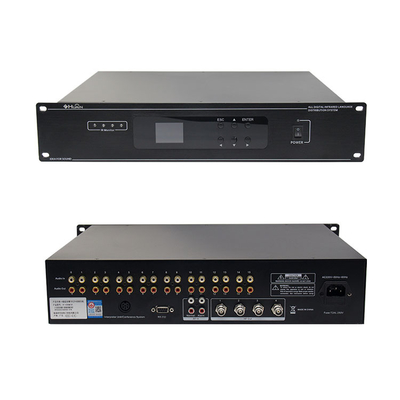

Digital infrared transmitting host

Menu language	Chinese and English（customized）
carrier frequency	2-8MHz
Audio processing	IR-DSP
frequency response	20Hz-20KHz
Distortion degree	＜0.2%
Signal to noise ratio	＞90 dB
Translation desk interface	6P-DIN

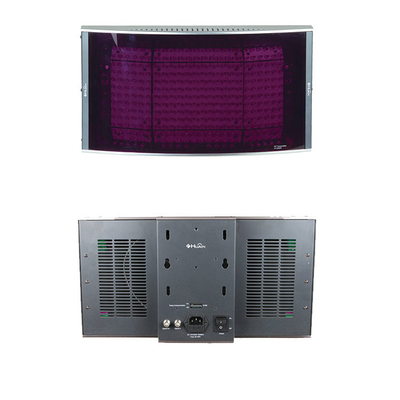

All digital infrared radiator

Number of channels	32CH
modulation mode	DQPSK
Infrared radiation power	25W
Output impedance	50Ω
RF input	100-2000mV
Radiation distance	50M
Carrier wavelength	850nm
LED display	Power / signal
Overall dimension	445×235×113mm

Company Profile

Zhuhai Huain Electronic Technology Co.,Ltd is a professional in modern conference products Manufacturer and designer , research and development production and sales in one of the high-tech enterprises.
HUAIN conference system, equipped with the 13th China -LAC business summit, China and Russia media business summit, Botswana-China business summit, China-UK financial research project meetings, Foro Empresarial Panama-China, China-Ghana trade & Investment Forum, China National Youth Games,G50 chairman(beijing)summit, Military World Games,China International Import Expo and the HongQiao International Economic Forum, and other international high-level Conference.
HUIAN company committed to the digital intelligent conference system, programmable central control system and peripheral equipment technology and application areas to seek a breakthrough in order to promote the traditional industry's technological revolution for the mission.digital high-quality audio and video systems products for partners to provide more Competitive solutions and services!
